Permanent Overbelt Magnets are designed specifically for
the extraction of occasional tramp iron from material being processed on the
conveyor belt, vibratory feeder or gravity chute. Usually the overbelt magnet is
a rectangular pattern, it's suspended over the material being conveyed, while
the ferrous material is extracted and held against the face of the magnet until
manually cleaned off.
Part No. |
Applying for belt
width
mm |
Catching
height
>mm |
Magnetic
strength
≤mT |
Conveying speed
≤
m/s |
Material Thickness
≤
mm |

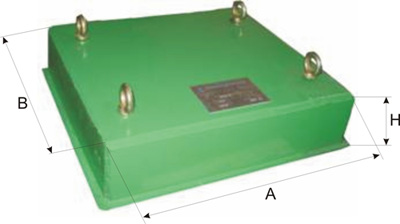

Outline dimension |
Weight
kg |
A |
B |
H |
CMoverbelt-300 |
300 |
75 |
57 |
4.5 |
50 |
350 |
300 |
250 |
65 |
CMoverbelt-400A |
400 |
100 |
60 |
4.5 |
70 |
450 |
350 |
275 |
115 |
CMoverbelt-400B |
400 |
75 |
60 |
4.5 |
30 |
400 |
260 |
220 |
75 |
CMoverbelt-500A |
500 |
150 |
60 |
4.5 |
90 |
550 |
450 |
305 |
206 |
CMoverbelt-500B |
500 |
100 |
60 |
4.5 |
50 |
500 |
310 |
230 |
165 |
CMoverbelt-650A |
650 |
200 |
65 |
4.5 |
150 |
735 |
650 |
312 |
450 |
CMoverbelt-650B |
650 |
130 |
65 |
4.5 |
100 |
650 |
400 |
236 |
210 |
CMoverbelt-800A |
800 |
250 |
68 |
4.5 |
200 |
985 |
850 |
315 |
680 |
CMoverbelt-800B |
800 |
200 |
68 |
4.5 |
150 |
800 |
600 |
270 |
420 |
CMoverbelt-1000 |
1000 |
300 |
68 |
4.5 |
250 |
1080 |
960 |
386 |
1180 |
OEM orders & Customer
Designed Applications are also welcomed. |
