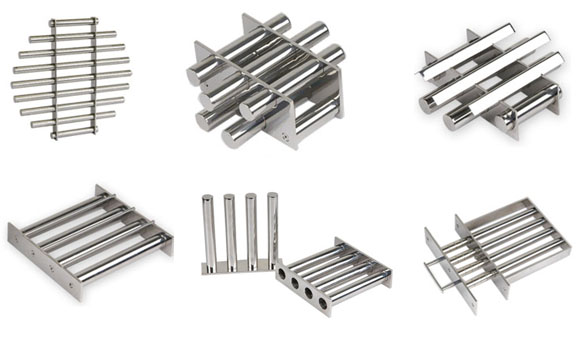

Grate/Grid Magnets are designed for product
purity for free flowing materials such as carbon black, drugs, chemicals,
cosmetics, food products, plastics, grains, spices, sugar, honey, salt, and
minerals. These units are easily installed in any hopper or floor opening, chute
or duct. The Magnetic Grids protect your processing machinery against dangerous
tramp iron. Magnetic filter bars fixed onto a stainless steel frameworks, when
anything containing iron substances passes through the framework, Iron particles
are attracted to the bar magnets by magnetic fields. As a result, your equipment
and facilities will be safe and sound, and your products will be safe for
consumption.
Round Version
Part No. |
Diameter
(mm) |
Number for bar |
Part No. |
Diameter
(mm) |
Number for bar |
CMgrate-R-100 |
100 |
2 |
CMgrate-R-400 |
400 |
8 |
CMgrate-R-150 |
150 |
3 |
CMgrate-R-450 |
450 |
9 |
CMgrate-R-200 |
200 |
4 |
CMgrate-R-500 |
500 |
10 |
CMgrate-R-250 |
250 |
5 |
CMgrate-R-550 |
550 |
11 |
CMgrate-R-300 |
300 |
6 |
CMgrate-R-600 |
600 |
12 |
CMgrate-R-350 |
350 |
7 |
CMgrate-R-800 |
800 |
16 |
OEM orders & Customer
Designed Applications are also welcomed.
Square Version
Part No. |
Square
A=B(mm) |
Number for bar |
Part No. |
Square
A=B(mm) |
Number for bar |
CMgrate-S-100 |
100 |
2 |
CMgrate-S-400 |
400 |
8 |
CMgrate-S-150 |
150 |
3 |
CMgrate-S-450 |
450 |
9 |
CMgrate-S-200 |
200 |
4 |
CMgrate-S-500 |
500 |
10 |
CMgrate-S-250 |
250 |
5 |
CMgrate-S-550 |
550 |
11 |
CMgrate-S-300 |
300 |
6 |
CMgrate-S-600 |
600 |
12 |
CMgrate-S-350 |
350 |
7 |
CMgrate-S-800 |
800 |
16 |
OEM orders & Customer
Designed Applications are also welcomed.
Dimension, construction and feature,
- Diameter of magnetic filter bar is 1"
- Optional tube spacing.
- We have Square type and Round type grate magnets. Two
layers, three layers or more can be provided on request.
- The distance
between to magnetic bar is 1 inch, 1/2 inch also can be provided on
request.
- Constructed of SS304 & SS316 casing tube and casing frame, it
is equipped with high density Ceramic 8 magnets and high-energy Rare-earth magnets to suit your
application.
- 90 degree angle baffles and Dia5mm round SS bar can be
attached to the grates on request.
- Easy-clean type can be provided on
request.
- All the magnetic bars are waterproof.
- Condition: Well
polished
|
