Grate Magnets in Housing effectively remove
ferrous fragments and fines from free-flowing material. They are designed for
ferrous metal separation in a wide variety of dry processing applications.
Housings are constructed 304 or 316L stainless steel. Wild stainless steel can
be provided on request. Strong magnetic grates inside filter the flow and
extract the unwanted ferrous metal. They are widely used in food industry and
chemical industry. Inside the housing, it can be one layer, two layers or more
layers high intensity magnetic grates in frames. To initiate cleaning, the
operator pulls two handles on the front of the housing, removing the magnetic
drawer from the product flow. As the drawer is pulled out, you can wipe off the
accumulated metal from the tubes into a catch box for disposal.
The easy-clean version grate magnets in housing are designed
to simplify the cleaning process to encourage frequent and quick removal of
collected tramp metal. Cleaning of the magnets is easily accomplished by
removing the tube casing of the grates and sliding out each magnet assembly.

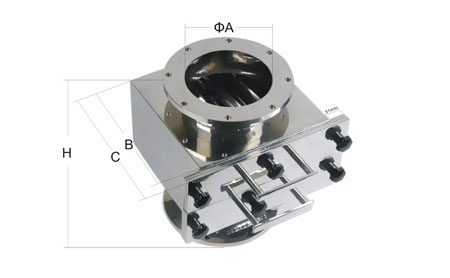

Circular Fitting
Circular fitting—Single row version
Part No. |
A |
B |
C |
H |
CMhousing-C-S-100 |
100 |
160 |
175 |
200 |
CMhousing-C-S-150 |
150 |
210 |
225 |
200 |
CMhousing-C-S-200 |
200 |
260 |
275 |
200 |
CMhousing-C-S-250 |
250 |
310 |
325 |
220 |
CMhousing-C-S-300 |
300 |
360 |
375 |
220 |
CMhousing-C-S-350 |
350 |
410 |
425 |
250 |
CMhousing-C-S-400 |
400 |
460 |
475 |
250 |
All dimensions in mm. Other
dimensions can be provided on request.
Circular fitting—Double row version
Part No. |
A |
B |
C |
H |
CMhousing-C-D-100 |
100 |
160 |
175 |
220 |
CMhousing-C-D-150 |
150 |
210 |
225 |
250 |
CMhousing-C-D-200 |
200 |
260 |
275 |
250 |
CMhousing-C-D-250 |
250 |
310 |
325 |
300 |
CMhousing-C-D-300 |
300 |
360 |
375 |
300 |
CMhousing-C-D-350 |
350 |
410 |
425 |
330 |
CMhousing-C-D-400 |
400 |
460 |
475 |
330 |
All dimensions in mm. Other
dimensions can be provided on request.

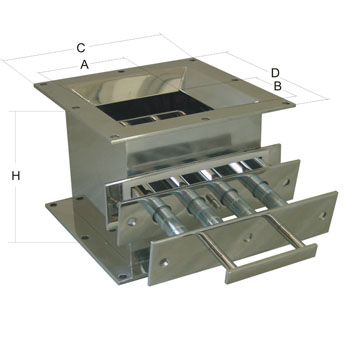

Square
Fitting
Square fitting—single row version
Part No. |
A=B |
C=D |
H |
CMhousing-S-S-100 |
100 |
180 |
200 |
CMhousing-S-S-150 |
150 |
230 |
200 |
CMhousing-S-S-200 |
200 |
280 |
200 |
CMhousing-S-S-250 |
250 |
330 |
220 |
CMhousing-S-S-300 |
300 |
380 |
220 |
CMhousing-S-S-350 |
350 |
430 |
220 |
CMhousing-S-S-400 |
400 |
480 |
220 |
All dimensions in mm. Other
dimensions can be provided on request.
Square fitting—double row version
Part No. |
A=B |
C=D |
H |
CMhousing-S-D-100 |
100 |
180 |
200 |
CMhousing-S-D-150 |
150 |
230 |
200 |
CMhousing-S-D-200 |
200 |
280 |
200 |
CMhousing-S-D-250 |
250 |
330 |
220 |
CMhousing-S-D-300 |
300 |
380 |
220 |
CMhousing-S-D-350 |
350 |
430 |
220 |
CMhousing-S-D-400 |
400 |
480 |
220 |
All dimensions in mm. Other
dimensions can be provided on request.
Feature and Construction
- It is equipped with high-energy Rare-earth Magnets. Diameter of magnetic
bar is 1". All of magnetic bars are waterproof.
- Construction uses Type 304 stainless steel. Type 316 stainless steel
available on request.
- Optional for Easy-clean version or manual cleaning version.
- Condition: Well polished.
|
