Welcome to Nihon Magnets - Nihon Industrial Products Pte Ltd

Magnetic Separators

  • Magnetic Filter Bar
  • Magnetic Sampling Probe
  • Grate/ Grid Magnet
  • Grate Magnets in Housing
  • Drawer Magnet for Plastic
         Processing

  • Liquid Line Magnet Trap
  • Bullet Head Pulley
  • Over belt Magnet

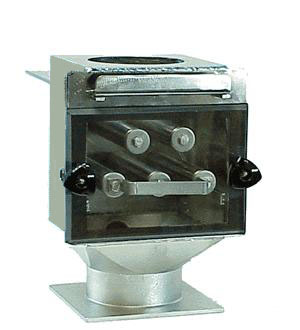

  • Drawer Magnets provide valuable protection for injection molding machines, blow molding machines, and extruders. They are primarily used in plastic progressing to prevent tramp metal damage. These drawer magnets provide economical continuous protection against costly machine downtime for all types of plastic resin processing machinery. Mounted directly on the feed throat of your plastic processing equipment, tramp metal is stopped from flowing into the machine by powerful magnets. Drawer magnets are available in different styles to suit specific application needs.

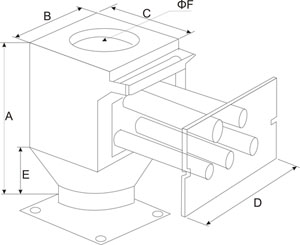

    Part No.

    Number of magnetic bar

    Dimension (mm)

    A

    B x C

    D

    E

    F

    CMdrawer-100

    3

    265

    100x100

    165

    65

    22

    CMdrawer-150

    5

    270

    150x150

    216

    70

    45

    CMdrawer-200

    7

    275

    200x200

    267

    75

    79

    CMdrawer-250

    9

    280

    250x250

    317.5

    80

    100

    OEM orders & Customer Designed Applications are also welcomed.

    Construction:

    1. Stainless Steel Construction. Mild steel available on request.
    2. Surface processing: Polishing and Painting for your choice.
    3. Normally, it is equipped with high density Ceramic 8 magnets. High-energy Rare-earth magnets are needed when you come across a difficult job.
    4. all of magnetic bars are waterproof.
