Magnetic Filter Bar provides a solution for
removing ferrous chips, fines, nuts, bolts, parts, damaging tramp iron. High
effective permanent magnetic filter bar can be installed at any point in solid,
powder or liquid material flows to catch and separate very fine ferrous
particles. It was used for purity from free flowing materials such as carbon
black, drugs and chemicals, cosmetics, plastics, grains, spices, sugar, honey,
salt ...
Round Version
Part No. |
Diameter
(mm) |
Length
(mm) |
Part No. |
Diameter
(mm) |
Length
(mm) |
CMbar-R-100 |
25 |
100 |
CMbar-R-600 |
25 |
600 |
CMbar-R-150 |
25 |
150 |
CMbar-R-650 |
25 |
650 |
CMbar-R-200 |
25 |
200 |
CMbar-R-700 |
25 |
700 |
CMbar-R-250 |
25 |
250 |
CMbar-R-750 |
25 |
750 |
CMbar-R-300 |
25 |
300 |
CMbar-R-800 |
25 |
800 |
CMbar-R-350 |
25 |
350 |
CMbar-R-850 |
25 |
850 |
CMbar-R-400 |
25 |
400 |
CMbar-R-900 |
25 |
900 |
CMbar-R-450 |
25 |
450 |
CMbar-R-950 |
25 |
950 |
CMbar-R-500 |
25 |
500 |
CMbar-R-1000 |
25 |
1000 |
CMbar-R-550 |
25 |
550 |
CMbar-R-1500 |
25 |
1500 |
Other length can be supplied
on request.
Square Version
Part No. |
Square
(mm) |
Length
(mm) |
Part No. |
Diameter
(mm) |
Length
(mm) |
CMbar-S-100-01 |
25x25 |
100 |
CMbar-S-100-02 |
50x50 |
100 |
CMbar-S-200-01 |
25x25 |
200 |
CMbar-S-200-02 |
50x50 |
200 |
CMbar-S-300-01 |
25x25 |
300 |
CMbar-S-300-02 |
50x50 |
300 |
CMbar-S-400-01 |
25x25 |
400 |
CMbar-S-400-02 |
50x50 |
400 |
CMbar-S-500-01 |
25x25 |
500 |
CMbar-S-500-02 |
50x50 |
500 |
CMbar-S-600-01 |
25x25 |
600 |
CMbar-S-600-02 |
50x50 |
600 |
CMbar-S-700-01 |
25x25 |
700 |
CMbar-S-700-02 |
50x50 |
700 |
CMbar-S-800-01 |
25x25 |
800 |
CMbar-S-800-02 |
50x50 |
800 |
CMbar-S-900-01 |
25x25 |
900 |
CMbar-S-900-02 |
50x50 |
900 |
CMbar-S-1000-01 |
25x25 |
1000 |
CMbar-S-1000-02 |
50x50 |
1000 |
CMbar-S-1500-01 |
25x25 |
1500 |
CMbar-S-1500-02 |
50x50 |
1500 |
Other length can be supplied
on request.
Dimension, construction and feature,
1. For round magnetic filter bar, we have Diameter 0.5", 0.75", 0.875", 1",
1.25", 1.5", 1.75",
2", 3", 4" for your choice. But
the most common diameter is 1". Standard tube lengths
range from 3" to 60" long. Square magnetic bars can be provided on
request.
2. Constructed of SS304 & SS316 casing tube, it is equipped with
high density Ceramic
8 magnets and high-energy
Rare-earth magnets to suit your application. You can
build or modify your own magnetic separation equipment with individual magnetic
filter bar.
3. Magnetic strength from 1500-12000gauss
can be asked as per your requirements.
For normal
magnetic bar equipped with Ceramic magnets, which could give typical
peak value of more than 3,000 Gauss on the surfaces,
and could be used up to
temperatures of 150 For
normal magnetic bar equipped with Rare-earth magnets,
which could give typical peak value of more
than 12,000 Gauss on the surfaces.

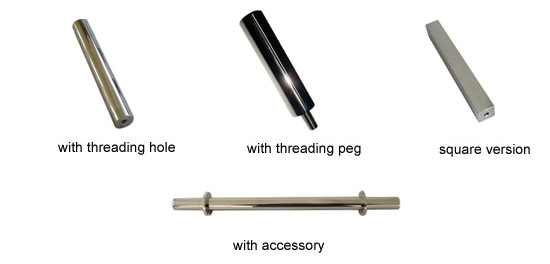

4. Fully seal
welded with either plain ends or tapped ends to suit your application.
5. All
of magnetic bars are waterproof.
6. Condition: Well polished.
Most standard sizes can be delivered in 1-2 working days to suit your
urgent needs. |
