Liquid Line Magnetic Traps are
designed to extract the ferrous materials from the slurry or liquid raw
materials in order to purify the material in the production process.
Strong magnetic tubes filter the flow and extract the unwanted ferrous
metal. The unit is simply connected to the existing pipeline via flanged
or threaded ends. Simple and easy access is possible using the quick
release lid. Cleaning of the magnets is easily accomplished by removing
the cover plate of the housing and sliding out each magnet assembly. |

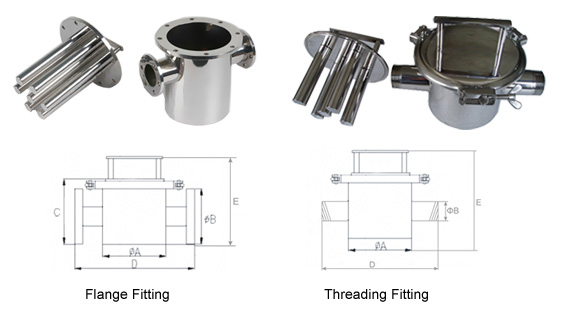

Flange Fitting
Part No. |
A |
B |
C |
D=E |
Number of bars |
CMtrap-F-150 |
150 |
50 |
150 |
300 |
5 |
CMtrap-F-200A |
200 |
50 |
200 |
350 |
7 |
CMtrap-F-200B |
200 |
75 |
200 |
350 |
7 |
CMtrap-F-250A |
250 |
50 |
250 |
400 |
9 |
CMtrap-F-250B |
250 |
75 |
250 |
400 |
9 |
CMtrap-F-250C |
250 |
100 |
250 |
400 |
9 |
CMtrap-F-300A |
300 |
50 |
300 |
450 |
9 |
CMtrap-F-300B |
300 |
75 |
300 |
450 |
9 |
CMtrap-F-300C |
300 |
100 |
300 |
450 |
9 |
OEM orders & Customer
Designed Applications are also welcomed.
Threading Fitting
Part No. |
A |
B |
D=E |
Number of bars |
CMtrap-T-150 |
150 |
50 |
300 |
5 |
CMtrap-T-200A |
200 |
50 |
350 |
7 |
CMtrap-T-200B |
200 |
75 |
350 |
7 |
CMtrap-T-250A |
250 |
50 |
400 |
9 |
CMtrap-T-250B |
250 |
75 |
400 |
9 |
CMtrap-T-250C |
250 |
100 |
400 |
9 |
CMtrap-T-300A |
300 |
50 |
450 |
9 |
CMtrap-T-300B |
300 |
75 |
450 |
9 |
CMtrap-T-300C |
300 |
100 |
450 |
9 |
OEM orders & Customer
Designed Applications are also welcomed.
Construction and feature
- It is equipped with high-energy Rare-earth Magnets. Diameter of magnetic
bar is 1".
- Construction uses Type 304 stainless steel. Type 316 stainless steel
available on request.
- It can be fastened by screw nuts; it also can be fastened by band clamp
- Easy-clean type can be provided on request.
- All of magnetic bars are waterproof.
- Condition: Well polished
|
|
 |
