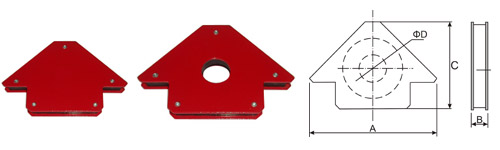

1. Multi-angle permanent magnetic welding fixtures are designed for fast and
accurate holding of flat and round ferrous metal for welding and assembly jobs.
Various angles available from 30°, 45°, 60°, 75°, 90°, to 180° .
Part
No. |
Dimension(mm) |
Weight (Kg) |
A |
B |
C |
D |
CMWelding-01 |
129 |
9 |
82 |
- |
0.27 |
CMWelding-02 |
155 |
17 |
103 |
25 |
0.58 |
CMWelding-03 |
188 |
25 |
122 |
45 |
1.1 |

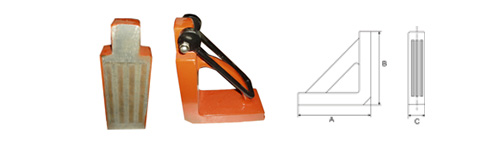

2. Heavy-duty
permanent magnetic welding fixtures
These powerful magnetic welding fixtures are equipped with two magnetic systems, and are designed for holding
components during welding, fabricating and assembling. Each magnetic system is
fixed in a nonmagnetic casing to minimize stray magnetic fields and reduce the
possibility of attracting weld spatter. Powerful, permanent magnets are mounted
in cast Aluminum housing which is available with fixed 90°angle.
Part No. |
Dimension(mm) |
Weight
(Kg) |
A |
B |
C |
CMWelding-04 |
180 |
210 |
55 |
5.3 |
CMWelding-05 |
220 |
270 |
90 |
7.2 |
|
|
 |
