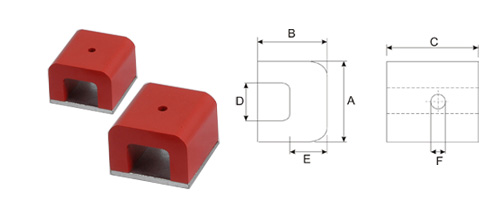

Alnico Horse
magnets
Part No. |
Dimension(mm) |
Pull Force
(N) |
A |
B |
C |
D |
E |
F |
CMhorseshoe-01 |
22.0 |
17.0 |
25.0 |
8.0 |
8.0 |
Ф7.0 |
45 |
CMhorseshoe-02 |
30.0 |
20.0 |
20.0 |
15.0 |
9.0 |
Ф4.0 |
49 |
CMhorseshoe-03 |
40.0 |
25.0 |
25.0 |
20.0 |
11.5 |
Ф5.0 |
90 |
CMhorseshoe-04 |
45.0 |
30.0 |
30.0 |
23.0 |
13.0 |
Ф5.0 |
118 |
CMhorseshoe-05 |
57.0 |
35.0 |
40.5 |
27.8 |
12.0 |
2XФ7.9 |
250 |
CMhorseshoe-06 |
60.3 |
39.7 |
61.9 |
31.8 |
13.0 |
Ф6.5 |
350 |
CMhorseshoe-07 |
63.5 |
46.0 |
47.6 |
34.9 |
16.0 |
Ф4.8 |
330 |
CMhorseshoe-08 |
70.0 |
41.3 |
57.2 |
34.1 |
16.0 |
2XФ7.9 |
370 |
CMhorseshoe-09 |
70.0 |
34.0 |
40.0 |
44.0 |
14.0 |
2XФ6.5? |
230 |
CMhorseshoe-10 |
79.4 |
54.0 |
82.6 |
38.5 |
18.0 |
2XФ9.5 |
500 |
CMhorseshoe-11 |
79.4 |
54.0 |
85.7 |
47.6 |
18.0 |
NULL |
600 |
CMhorseshoe-12 |
127.0 |
98.0 |
48.0 |
70.0 |
40.0 |
2XФ11 |
600 |

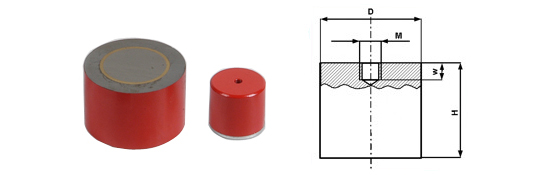

Alnico deep pots
Part No. |
Dimension(mm) |
Pull Force
(N) |
D |
H |
M |
CMdeeppot-01 |
9.50 |
15.1 |
3 |
10 |
CMdeeppot-02 |
12.7 |
15.8 |
4 |
20 |
CMdeeppot-03 |
17.5 |
16.0 |
6 |
30 |
CMdeeppot-04 |
20.5 |
19.0 |
6 |
50 |
CMdeeppot-05 |
27.0 |
25.0 |
6 |
100 |
CMdeeppot-06 |
30.0 |
35.0 |
6 |
150 |
CMdeeppot-07 |
35.0 |
20.0 |
6 |
150 |
CMdeeppot-08 |
35.0 |
30.0 |
6 |
180 |
CMdeeppot-09 |
40.0 |
30.0 |
8 |
300 |
CMdeeppot-10 |
40.0 |
35.0 |
6 |
350 |
CMdeeppot-11 |
45.0 |
25.0 |
6 |
150 |
CMdeeppot-12 |
45.0 |
30.0 |
8 |
400 |
CMdeeppot-13 |
50.0 |
40.0 |
8 |
500 |
CMdeeppot-14 |
65.0 |
43 |
12 |
600 |

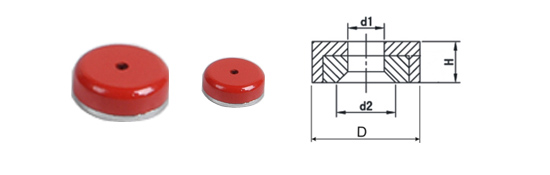

Alnico shallow pots
Part No. |
Dimension(mm) |
Weigh
(g) |
Pull
Force
(N) |
D |
d1 |
d2 |
H |
CMshallowpot-01 |
19.1 |
3.7 |
7.8 |
7.5 |
15 |
30 |
CMshallowpot-02 |
28.6 |
4.8 |
8.5 |
8.5 |
45 |
50 |
CMshallowpot-03 |
38.1 |
4.8 |
11.1 |
10.4 |
85 |
130 |

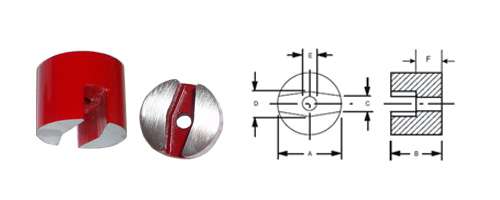

Alnico V button magnets
Part No. |
Dimension(mm) |
Pull
Force
(N) |
A |
B |
C |
D |
E |
F |
CMbutton-01 |
12.7 |
9.5 |
4 |
7.1 |
4.4 |
4.7 |
9 |
CMbutton-02 |
19.1 |
12.7 |
5.5 |
8.7 |
4.8 |
6.4 |
18 |
CMbutton-03 |
25.4 |
15.9 |
5.5 |
8.7 |
4.8 |
8 |
36 |
CMbutton-04 |
38.1 |
25.4 |
7.9 |
12.7 |
7.1 |
12.7 |
50 |

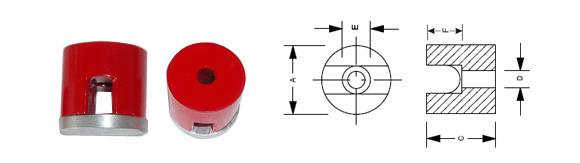

U-shape Cast Alnico V button magnets
Part No. |
Dimension(mm) |
Pull
Force
(N) |
A |
C |
E |
D |
F |
CMU-button-01 |
11.1 |
11.1 |
5.6 |
0.140 |
6.5 |
9 |
CMU-button-02 |
15.9 |
15.9 |
9 |
0.187 |
9 |
18 |
CMU-button-03 |
17.5 |
17.5 |
9 |
0.187 |
9 |
22.5 |
CMU-button-04 |
22 |
22 |
11.1 |
0.250 |
10.5 |
40 |
CMU-button-05 |
25.4 |
25.4 |
12.7 |
0.250 |
10.5 |
54 |
CMU-button-06 |
19 |
12.7 |
6.35 |
0.218 |
9.525 |
18 |
CMU-button-07 |
22 |
25.4 |
12.7 |
0.250 |
9.525 |
40 |
CMU-button-08 |
32 |
19 |
11.1 |
0.187 |
12.7 |
81 |
CMU-button-09 |
32 |
35 |
17.5 |
0.312 |
13.5 |
103 |
CMU-button-010 |
38.1 |
44.5 |
22 |
0.375 |
16 |
175 |
CMU-button-011 |
54 |
52.4 |
28.6 |
0.375 |
24.5 |
365 |
|
|
 |
