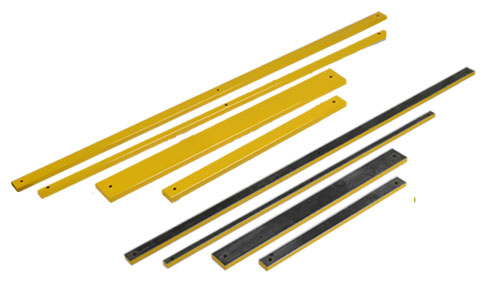

Magnetic Rails, Magnetic Tool Holders, Magnetic Attraction
Bar

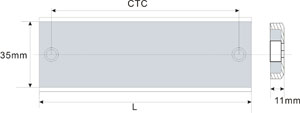

Part No. |
Length |
CTC |
Pull force (N) |
CMrail-01 |
100 |
82 |
152 |
CMrail-02 |
150 |
133 |
227 |
CMrail-03 |
200 |
184 |
302 |
CMrail-04 |
300 |
286 |
345 |
CMrail-05 |
450 |
438 |
520 |
All dimension in mm. Other
length can be provided on request.
Part No. |
Length |
CTC |
Pull force (N) |
CMrail-06 |
100 |
82 |
200 |
CMrail-07 |
150 |
133 |
276 |
CMrail-08 |
200 |
184 |
405 |
CMrail-19 |
300 |
286 |
716 |
CMrail-10 |
450 |
438 |
1200 |
All dimension in mm. Other
length can be provided on request.
Part No. |
Length |
CTC |
Pull force (N) |
CMrail-11 |
100 |
82 |
500 |
CMrail-12 |
150 |
133 |
750 |
CMrail-13 |
200 |
184 |
1000 |
CMrail-14 |
300 |
286 |
1490 |
CMrail-15 |
450 |
438 |
2240 |
All dimension in mm. Other
length can be provided on request.

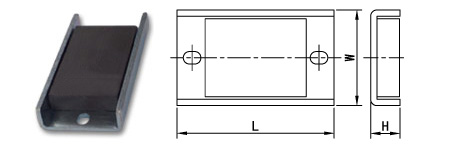

Ceramic Channel Magnets
Part No. |
Dimension (mm) |
Pull force (N) |
Length |
Width |
Thickness |
CMchannel-01 |
80 |
38.1 |
11 |
230 |
CMchannel-02 |
100 |
38.1 |
11 |
250 |
All dimension in mm. Other
length can be provided on request. |
|
 |
