Electro Lifting Magnet
1, Round Scrap Lifting
Magnets are suitable for transporting steel materials, chips, scraps,
slabs, cast ingots, spherical steel and sheets.
Technical Specification Voltage Rated 220DC Working Duration
(TD):60%, normal temperature
Part No. |
Cool-state
power
consum ption
KW |
Current
cool-state
/hot-state
A |
Lifting capability
Kg |
Outline
dimension
mm |
Weight
kg |
Steel sphere |
Casing iron |
scrap |
A |
B |
C |
D |
E |
Cool |
Hot |
Cool |
hot |
CMEL-RO-500 |
2.55 |
11.8/7.7 |
1200 |
220 |
130 |
80 |
65 |
500 |
700 |
160 |
90 |
25 |
220 |
CMEL-RO-600 |
3.0 |
13.6/8.9 |
2000 |
290 |
170 |
95 |
80 |
600 |
750 |
160 |
90 |
25 |
340 |
CMEL-RO-700 |
3.3 |
15/9.8 |
2500 |
380 |
200 |
120 |
100 |
700 |
800 |
160 |
90 |
30 |
490 |
CMEL-RO-800 |
3.96 |
18/12 |
3000 |
480 |
250 |
150 |
130 |
800 |
800 |
160 |
90 |
30 |
620 |
CMEL-RO-900 |
5.9 |
26.8/17.5 |
4500 |
600 |
400 |
250 |
200 |
900 |
1090 |
200 |
125 |
40 |
800 |
CMEL-RO-1000 |
7.7 |
35/22.8 |
6500 |
1000 |
800 |
450 |
400 |
1100 |
1140 |
220 |
150 |
45 |
1350 |
CMEL-RO-1200 |
10 |
45.5/29.5 |
7500 |
1300 |
1000 |
650 |
500 |
1200 |
1100 |
220 |
150 |
45 |
1700 |
CMEL-RO-1300 |
12 |
54.5/35.5 |
8500 |
1400 |
1100 |
700 |
600 |
1300 |
1240 |
250 |
175 |
50 |
2010 |
CMEL-RO-1500 |
15.6 |
70.9/46.1 |
11000 |
1900 |
1500 |
1100 |
900 |
1500 |
1250 |
350 |
210 |
60 |
2830 |
CMEL-RO-1650 |
16.5 |
75/48.8 |
12500 |
2300 |
1800 |
1300 |
1100 |
1650 |
1590 |
370 |
230 |
75 |
3200 |
CMEL-RO-1800 |
22.5 |
102.3/66.5 |
14500 |
2750 |
2100 |
1600 |
1350 |
1800 |
1490 |
370 |
230 |
75 |
4230 |
CMEL-RO-2100 |
28.4 |
129/84 |
21000 |
3500 |
2800 |
2200 |
1850 |
2100 |
1860 |
400 |
250 |
80 |
7000 |
CMEL-RO-2400 |
33.9 |
154/100 |
26000 |
4800 |
3800 |
2850 |
2250 |
2400 |
2020 |
450 |
280 |
90 |
9000 |
CMEL-RO-2600 |
35.6 |
162/105 |
30000 |
6100 |
4900 |
3600 |
3850 |
2600 |
2100 |
450 |
280 |
90 |
10100 |
CMEL-RO-2800 |
39 |
178/116 |
34000 |
7100 |
5700 |
4450 |
3400 |
2800 |
2700 |
500 |
300 |
100 |
12450 |
CMEL-RO-3000 |
41.6 |
189/123 |
39000 |
8350 |
6700 |
5250 |
4100 |
3000 |
2300 |
500 |
300 |
100 |
14980 |
(For Reference
Only)
For High temp., please contact our sales person who will replay soon

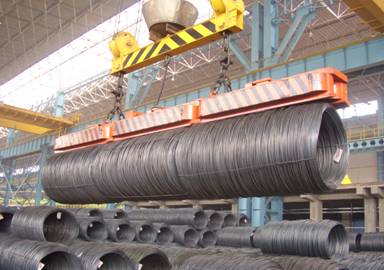

2,Rectangular Electro Lifting Magnet is suitable for lifting or transferring bundled bar/tube materials as well
as heavy duty steel ingots or steel moulds.
Technical Specification Voltage Rated 220DC Working Duration
(TD):60%
Part No. |
Cool-state
power
consumption KW |
Current
cool-state
/hot-state
A |
Outline
dimension
mm |
Weight
kg |
Lifting
capability
Kg
(based on using 2
models each) |
A |
B |
C |
D |
E |
F |
G |
H |
CMEL-RE-800 |
5 |
22.7/13.6 |
806 |
716 |
1210 |
350 |
160 |
250 |
35 |
480 |
1400 |
Take bundled bar steel for example, it can
lift Dia330x9000mm |
CMEL-RE-900A |
8.6 |
38.9/23.4 |
966 |
956 |
1450 |
350 |
170 |
250 |
40 |
446 |
1756 |
It can lift 6tons steel bars with
length6~9m, 3tons/bundle |
CMEL-RE-900B |
8.8 |
40/24 |
996 |
1026 |
1450 |
400 |
160 |
260 |
45 |
480 |
1630 |
It can lift 8tons steel bars with
length6~9m, 4tons/bundle |
CMEL-RE-1300A |
11.8 |
53.6/32.2 |
1360 |
1160 |
1050 |
375 |
170 |
280 |
45 |
520 |
3480 |
It can lift 11pcs steel100×100×5mm with
length 19mm; it can lift 9pcs steel140×140x5mm with length16m |
CMEL-RE-1300B |
9.6 |
43.6/26.2 |
1360 |
1160 |
1480 |
375 |
170 |
280 |
45 |
605 |
3890 |
It can lift 6pcs steel100×100×5mm with
length 10mm; it can lift 6pcs steel140×140x5mm with length10m |
CMEL-RE-1300C |
7.8 |
35.5/21.3 |
1306 |
816 |
1250 |
350 |
170 |
250 |
40 |
525 |
2860 |
It can lift 8~10tons steel bar with length
9~12m if using 4 units this model |
CMEL-RE-1300D |
9.7 |
43.9/26.4 |
1306 |
1096 |
1300 |
375 |
170 |
250 |
40 |
426 |
3170 |
It can lift 8tons steel bar with length
6~9m,4tons/bundle |
CMEL-RE-15000A |
8.1 |
36.8/22.1 |
1500 |
900 |
1400 |
450 |
180 |
280 |
40 |
512 |
2920 |
It can lift 8~10tons steel bars with
diameter12~ 40mm, with length 9-12mif using 4units this model |
CMEL-RE-15000B |
9.51 |
43.2/25.9 |
1560 |
1170 |
1520 |
430 |
180 |
280 |
55 |
580 |
3570 |
It can lift 15tons Φ 120 ~Φ 500 steel bar |
CMEL-RE-17000 |
10.24 |
46.6/28 |
1766 |
1072 |
1565 |
450 |
170 |
250 |
65 |
595 |
3630 |
It can lift 14tons bundled bars with length
6~12m, 3.5ton/ bundle |
(For Reference Only)
3, Electro lifting magnets for attracting and lifting steel band
roll. The products are divided into vertical lifting & transporting
type, horizontal lifting & transporting type and general type(which can lift
& transport both vertically and horizontally).High-temperature special
electromagnet is specially used for new annealed technological process of roll
plate. It can work under high temperature of 100℃-600℃,and lift & transport
band roll vertically or horizontally.
Vertical lifting & transporting
type-the electromagnet attracts and holds the end face of band roll. It is
suitable for lifting and transporting packed or unpacked band
roll.
Horizontal lifting & transporting type-the electromagnet attracts
and holds the side face of band roll, the band roll must be packed and bunched.

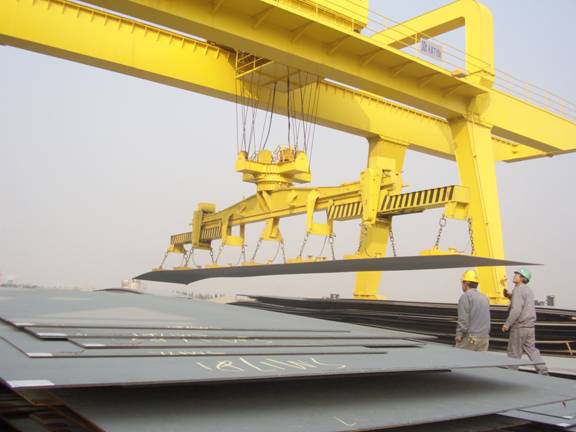

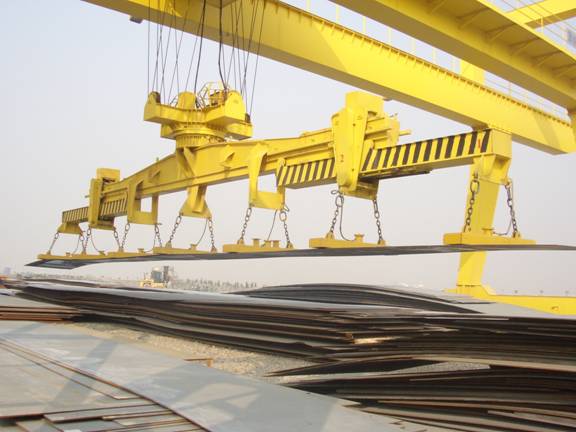

4, Electro lifting magnets for
attracting and lifting steel plate, sheet.
|
