Permanent Lifting Magnets are
designed for moving, loading and lifting purpose. Equipped with super Neodymium
magnets, the lifters are powerful. On and Off of the magnetic path is controlled
by turning the manual handle. The lifters have the features of strong
attraction, smaller volume, lighter weight, powerful lifting effort, easy and
safe to operate, long-period effort and no need power supply. Lifting Magnets
are widely used to load and transfer steel and iron for the factories, docks,
warehouses, transportations, etc.
All of our Permanent Lifting magnets are CE
certificated.
Part No. |
Rated lifting
strength
(kgf) |
Cylindrical lifting
strength
(kgf) |
Max
pull-off
strength
(kgf) |

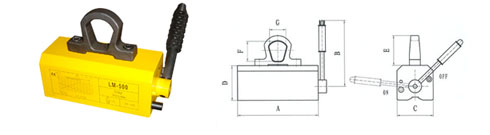

A |
B |
C |
D |
E |
F |
G |
Operation
temperature
(°C) |
Dead
Weight
(kg) |
CMPLM0.1T |
100 |
50 |
335 |
86 |
150 |
66 |
67 |
63 |
35 |
43 |
<80 |
3 |
CMPLM0.3T |
300 |
150 |
1000 |
180 |
168 |
80 |
80 |
63 |
35 |
43 |
<80 |
9 |
CMPLM0.6T |
600 |
300 |
2000 |
250 |
198 |
107 |
103 |
88 |
52 |
60 |
<80 |
20 |
CMPLM1.0T |
1000 |
500 |
3350 |
330 |
262 |
129 |
130 |
88 |
52 |
60 |
<80 |
39 |
CMPLM2.0T |
2000 |
1000 |
6700 |
415 |
370 |
170 |
170 |
122 |
64 |
87 |
<80 |
78 |
CMPLM3.0T |
3000 |
1500 |
10050 |
470 |
480 |
234 |
190 |
122 |
64 |
87 |
<80 |
160 |
CMPLM6.0T |
6000 |
3000 |
20100 |
650 |
670 |
330 |
270 |
130 |
64 |
87 |
<80 |
380 |
OEM orders & Customer Designed Applications are also
welcomed. |
