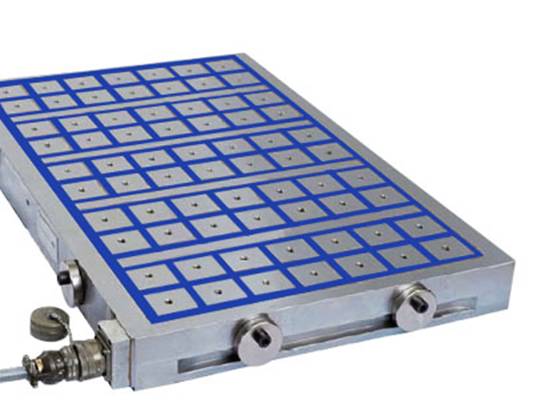

The electric permanent-magnetic chuck is a new type
magnetic chuck using electric pulse for "switch On and switch Off" magnetic
force. It will result in an endless permanent magnetic attraction, so it's safe
and reliable for the chuck to attract workpiece. Time needed for "On/Off" is
less than one second, which will ensure little electric pulse power consumption
and no heat deformation of the chuck. It has no sliding parts as ordinary
permanent magnetic chuck, which results in a stable, firm and high-precision
structure. To use electric pulse to enforce "ON" or "OFF" of magnetic force will
ensure automatic control.
It's widely applied to attract
workpieces in surface grinders, electric processing machine-tools, as well as in
casting, drilling, planning and boring machines. Besides, it's used in accessory
holders for processing centers and FMS systems.
 |
High strength,
High security,
High
stability
Reliable |
CMEPMchuck-50
General Specificatio
Type |
Pole Size
mm |
Pole Force
kgf |
Poles
per
m2 |
CMEPMchuck-50A |
50x50 |
350 |
140 |
CMEPMchuck-50B |
50x50 |
350 |
196 |
CMEPMchuck-50A
Height=68mm |
Part No. |
Size
(mm) |
Number of
Pole |
Weight
(Kg) |
CMEPMchuck-50A-001 |
220x470 |
12 |
55 |
CMEPMchuck-50A-002 |
220x620 |
16 |
70 |
CMEPMchuck-50A-003 |
220x770 |
20 |
90 |
CMEPMchuck-50A-004 |
220x920 |
24 |
105 |
CMEPMchuck-50A-005 |
220x1060 |
28 |
120 |
|
CMEPMchuck-50A-006 |
300x320 |
12 |
50 |
CMEPMchuck-50A-007 |
300x470 |
18 |
75 |
CMEPMchuck-50A-008 |
300x620 |
24 |
95 |
CMEPMchuck-50A-009 |
300x770 |
30 |
120 |
CMEPMchuck-50A-010 |
300x920 |
36 |
140 |
CMEPMchuck-50A-011 |
300x1060 |
42 |
160 |
|
CMEPMchuck-50A-012 |
400x320 |
16 |
65 |
CMEPMchuck-50A-013 |
400x470 |
24 |
95 |
CMEPMchuck-50A-014 |
400x620 |
32 |
125 |
CMEPMchuck-50A-015 |
400x770 |
40 |
155 |
CMEPMchuck-50A-016 |
400x920 |
48 |
185 |
CMEPMchuck-50A-017 |
400x1060 |
56 |
215 |
|
CMEPMchuck-50A-018 |
490x320 |
20 |
80 |
CMEPMchuck-50A-019 |
490x470 |
30 |
120 |
CMEPMchuck-50A-020 |
490x620 |
40 |
155 |
CMEPMchuck-50A-021 |
490x770 |
50 |
190 |
CMEPMchuck-50A-022 |
490x920 |
60 |
230 |
CMEPMchuck-50A-023 |
490x1060 |
70 |
260 |
|
CMEPMchuck-50A-024 |
590x320 |
24 |
95 |
CMEPMchuck-50A-025 |
590x470 |
36 |
140 |
CMEPMchuck-50A-026 |
590x620 |
48 |
185 |
CMEPMchuck-50A-027 |
590x770 |
60 |
230 |
CMEPMchuck-50A-028 |
590x920 |
72 |
275 |
CMEPMchuck-50A-029 |
590x1060 |
84 |
315 |
|
CMEPMchuck-50B
Height=68mm |
Part No. |
Size (mm) |
Number of Pole |
Weight
(Kg) |
CMEPMchuck-50B-001 |
230x470 |
18 |
55 |
CMEPMchuck-50B-002 |
230x620 |
24 |
70 |
CMEPMchuck-50B-003 |
230x770 |
30 |
90 |
CMEPMchuck-50B-004 |
230x920 |
36 |
110 |
CMEPMchuck-50B-005 |
230x1060 |
42 |
125 |
|
CMEPMchuck-50B-006 |
300x320 |
16 |
50 |
CMEPMchuck-50B-007 |
300x470 |
24 |
75 |
CMEPMchuck-50B-008 |
300x620 |
32 |
95 |
CMEPMchuck-50B-009 |
300x770 |
40 |
120 |
CMEPMchuck-50B-010 |
300x920 |
48 |
140 |
CMEPMchuck-50B-011 |
300x1060 |
58 |
165 |
|
CMEPMchuck-50B-012 |
410x320 |
24 |
70 |
CMEPMchuck-50B-013 |
410x470 |
36 |
100 |
CMEPMchuck-50B-014 |
410x620 |
48 |
130 |
CMEPMchuck-50B-015 |
410x770 |
60 |
160 |
CMEPMchuck-50B-016 |
410x920 |
72 |
195 |
CMEPMchuck-50B-017 |
410x1060 |
84 |
220 |
|
CMEPMchuck-50B-018 |
490x320 |
28 |
80 |
CMEPMchuck-50B-019 |
490x470 |
42 |
120 |
CMEPMchuck-50B-020 |
490x620 |
56 |
155 |
CMEPMchuck-50B-021 |
490x770 |
70 |
195 |
CMEPMchuck-50B-022 |
490x920 |
84 |
230 |
CMEPMchuck-50B-023 |
490x1060 |
98 |
265 |
|
CMEPMchuck-50B-024 |
600x320 |
36 |
100 |
CMEPMchuck-50B-025 |
600x470 |
54 |
145 |
CMEPMchuck-50B-026 |
600x620 |
72 |
190 |
CMEPMchuck-50B-027 |
600x770 |
90 |
235 |
CMEPMchuck-50B-028 |
600x920 |
108 |
280 |
CMEPMchuck-50B-029 |
600x1060 |
126 |
325 |
|
CMEPMchuck-75
General Specification
Type |
Pole Size
mm |
Pole Force
kgf |
Poles
per
m2 |
CMEPMchuck-75A |
75x75 |
780 |
66 |
CMEPMchuck-75B |
75x75 |
780 |
100 |
CMEPMchuck-75C |
75x75 |
850 |
100 |
CMEPMchuck-75A
Height=68mm |
Part No. |
Size
(mm) |
Number of Pole |
Weight
(Kg) |
CMEPMchuck-75A-001 |
310x620 |
12 |
95 |
CMEPMchuck-75A-002 |
310x820 |
16 |
125 |
CMEPMchuck-75A-003 |
310x1020 |
20 |
155 |
|
CMEPMchuck-75A-005 |
460x620 |
18 |
125 |
CMEPMchuck-75A-006 |
460x820 |
24 |
165 |
CMEPMchuck-75A-007 |
460x1020 |
30 |
210 |
|
CMEPMchuck-75A-008 |
600x620 |
24 |
180 |
CMEPMchuck-75A-009 |
600x820 |
32 |
200 |
CMEPMchuck-75A-010 |
600x1020 |
40 |
295 |
CMEPMchuck-75B
Height=68mm |
Part No. |
Size
(mm) |
Number of
Pole |
Weight
(Kg) |
CMEPMchuck-75B-001 |
230x620 |
12 |
75 |
CMEPMchuck-75B-002 |
230x820 |
16 |
95 |
CMEPMchuck-75B-003 |
230x1020 |
20 |
120 |
|
CMEPMchuck-75B-004 |
310x430 |
12 |
70 |
CMEPMchuck-75B-005 |
310x620 |
18 |
95 |
CMEPMchuck-75B-006 |
310x820 |
24 |
125 |
CMEPMchuck-75B-007 |
310x1020 |
30 |
155 |
|
CMEPMchuck-75B-008 |
410x430 |
16 |
90 |
CMEPMchuck-75B-009 |
410x620 |
24 |
125 |
CMEPMchuck-75B-010 |
410x820 |
32 |
165 |
CMEPMchuck-75B-011 |
410x1020 |
40 |
210 |
|
CMEPMchuck-75B-012 |
490x230 |
10 |
60 |
CMEPMchuck-75B-013 |
490x430 |
20 |
105 |
CMEPMchuck-75B-014 |
490x620 |
30 |
150 |
CMEPMchuck-75B-015 |
490x820 |
40 |
200 |
CMEPMchuck-75B-016 |
490x1020 |
50 |
245 |
|
CMEPMchuck-75B-017 |
590x230 |
12 |
70 |
CMEPMchuck-75B-018 |
590x430 |
24 |
125 |
CMEPMchuck-75B-019 |
590x620 |
36 |
180 |
CMEPMchuck-75B-020 |
590x820 |
48 |
240 |
CMEPMchuck-75B-021 |
590x1020 |
60 |
295 |
|
CMEPMchuck-75C
Height=68mm |
Part No. |
Size
(mm) |
Number of
Pole |
Weight
(Kg) |
CMEPMchuck-75C-001 |
230x620 |
12 |
80 |
CMEPMchuck-75C-002 |
230x820 |
16 |
110 |
CMEPMchuck-75C-003 |
230x1020 |
20 |
135 |
|
CMEPMchuck-75C-004 |
310x430 |
12 |
75 |
CMEPMchuck-75C-005 |
310x620 |
18 |
110 |
CMEPMchuck-75C-006 |
310x820 |
24 |
145 |
CMEPMchuck-75C-007 |
310x1020 |
30 |
180 |
|
CMEPMchuck-75C-008 |
410x430 |
16 |
100 |
CMEPMchuck-75C-009 |
410x620 |
24 |
145 |
CMEPMchuck-75C-010 |
410x820 |
32 |
190 |
CMEPMchuck-75C-011 |
410x1020 |
40 |
235 |
|
CMEPMchuck-75C-012 |
490x230 |
10 |
65 |
CMEPMchuck-75C-013 |
490x430 |
20 |
120 |
CMEPMchuck-75C-014 |
490x620 |
30 |
170 |
CMEPMchuck-75C-015 |
490x820 |
40 |
225 |
CMEPMchuck-75C-0116 |
490x1020 |
50 |
260 |
|
CMEPMchuck-75C-017 |
590x230 |
12 |
80 |
CMEPMchuck-75C-018 |
590x430 |
24 |
145 |
CMEPMchuck-75C-019 |
590x620 |
36 |
205 |
CMEPMchuck-75C-020 |
590x820 |
48 |
270 |
CMEPMchuck-75C-021 |
590x1020 |
60 |
335 |
|
OEM orders & Customer Designed Applications are also
welcomed. |
